TVS Jupiter 125

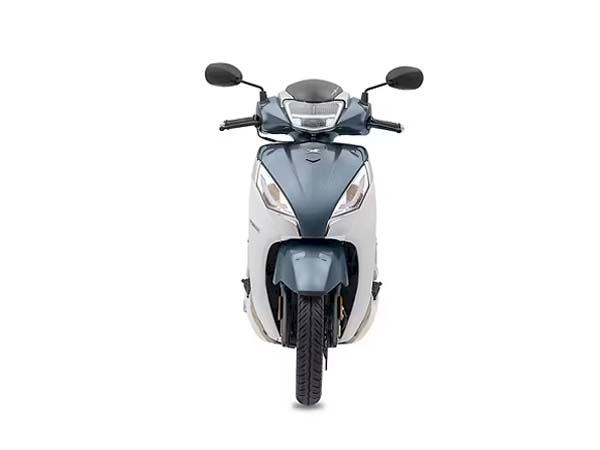

Front View

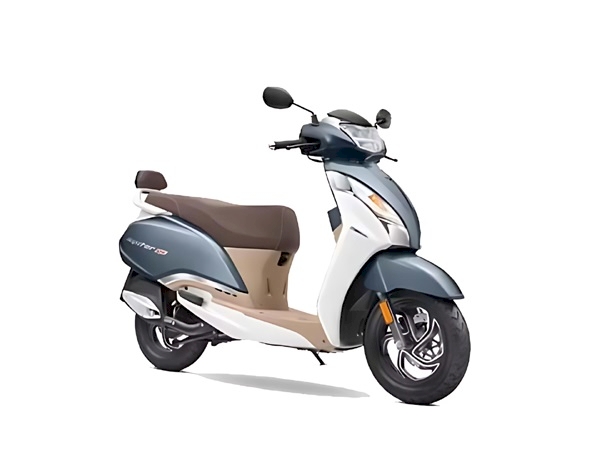

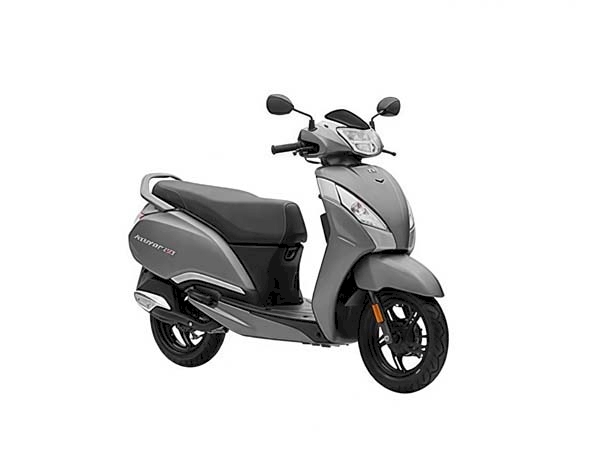

Front Right 3/4 View

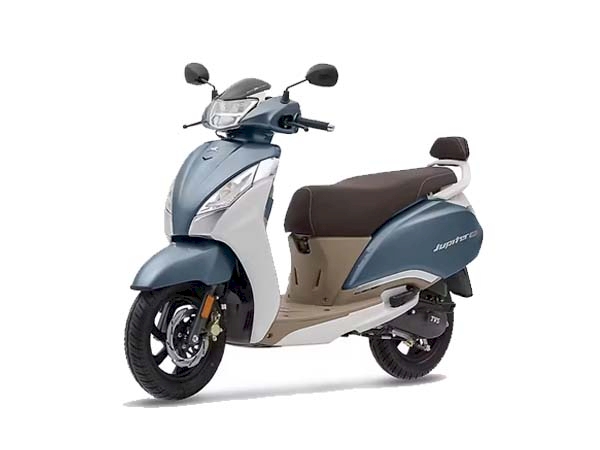

Front Left 3/4 View

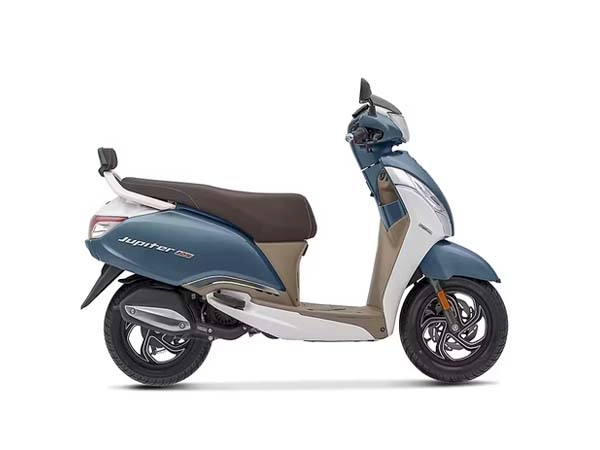

Right Side View

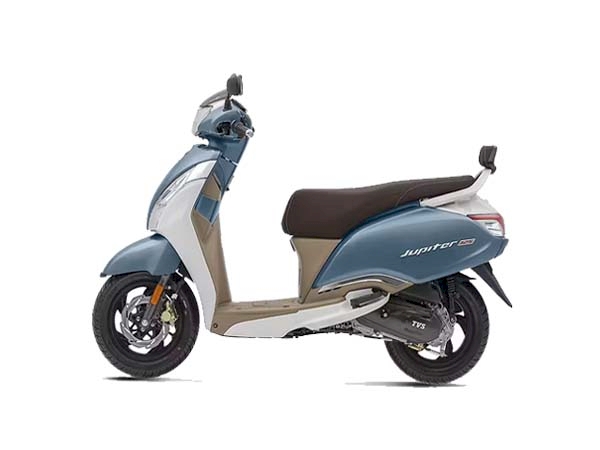

Left Side View

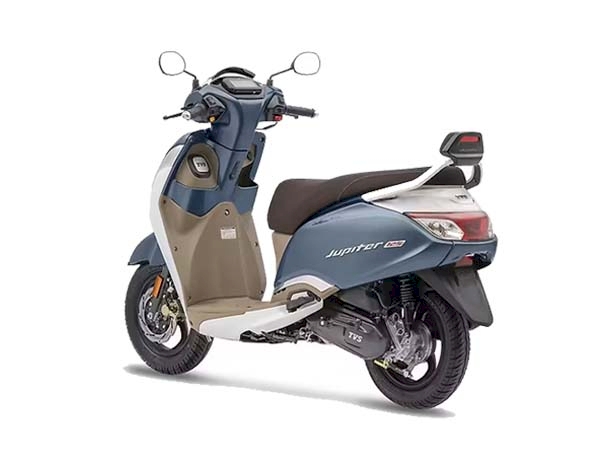

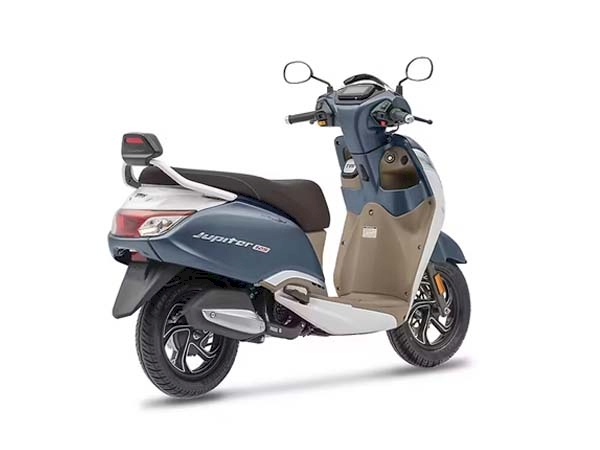

Rear Right 3/4 View
Rear Left 3/4 View

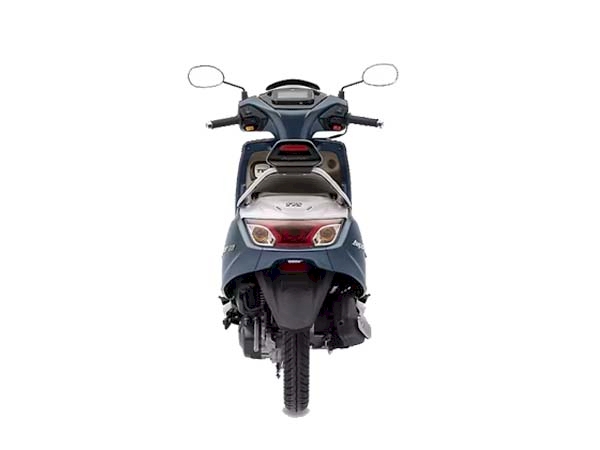

Rear View
Front Tyre View
Rear Tyre View
Front Wheel View
Rear Wheel View
Front Disc Brake View
Rear Drum Brake View
Front Suspension View
Rear Suspension View
Handlebar View
Instrument Cluster View
Ignition View
USB Charging Port View
Front Indicator View
Front Fender View
Seat View
Under Storage View
Grab Rail View
Pillion Footrest View
Rear Indicator View
Tail Lamp View
Engine View
Muffler View

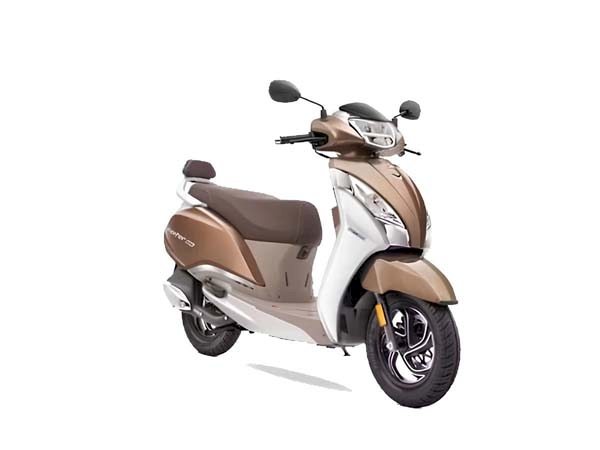

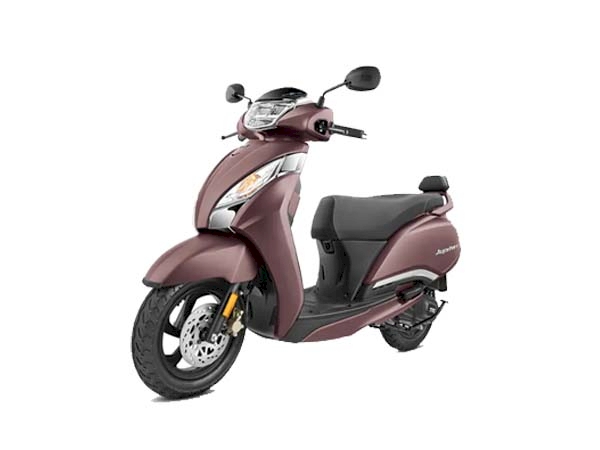

Matte Copper Bronze

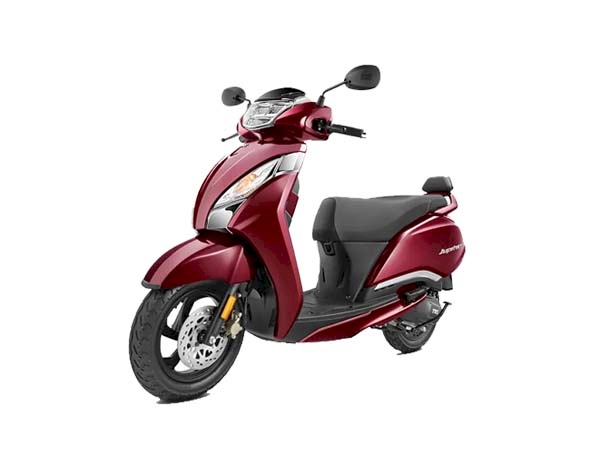

Elegant Red
Pristine White

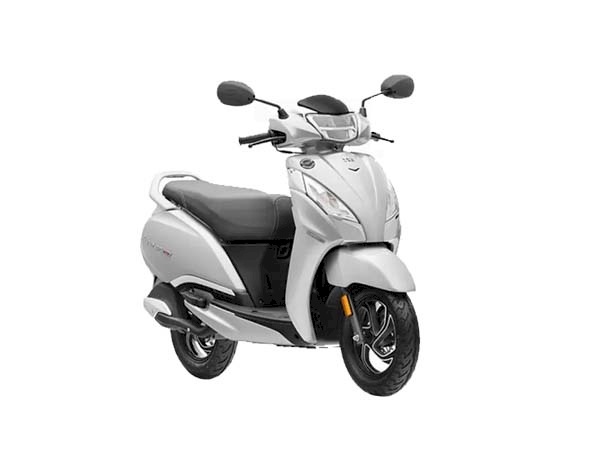

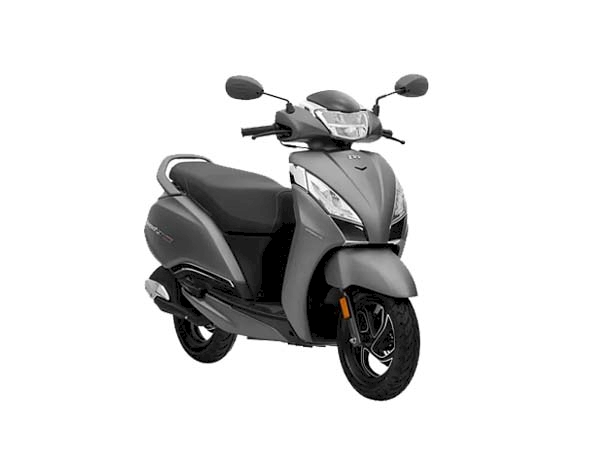

Titanium Grey

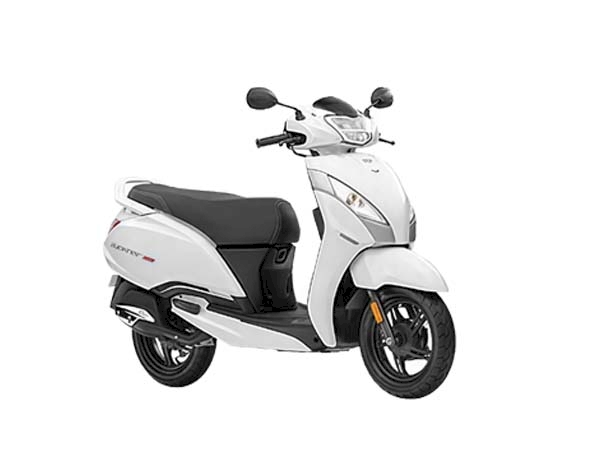

White

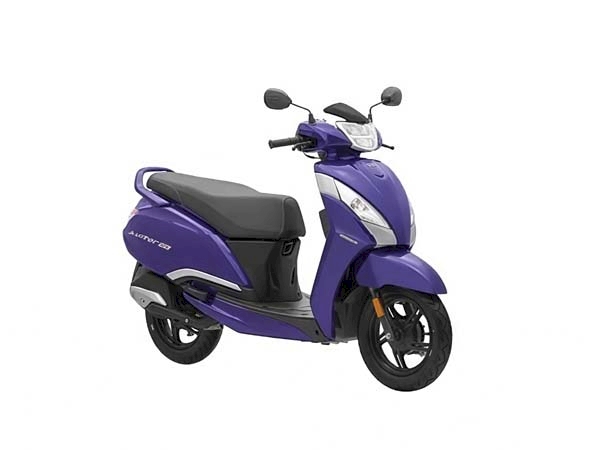

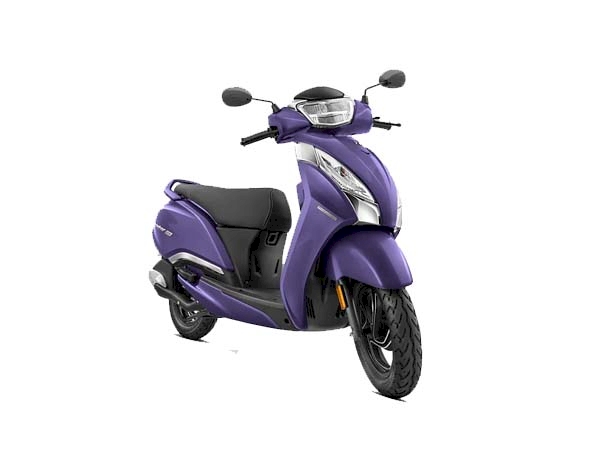

Indiblue

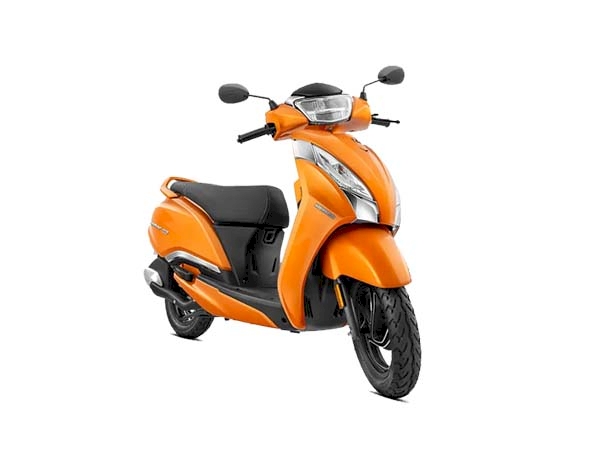

Dawn Orange
TVS Jupiter 125 Summary
Fuel Type
Petrol
Engine
124.8 cc
Transmission
Automatic
Mileage
50 kmpl
Body Type
Scooter
Max Power
8.15 PS @ 6500 rpm
Seating Capacity
2
TVS Jupiter 125 Colours (7 Colours)
TVS Jupiter 125 Varients (3 Varients)
| # | Varients | Ex-showroom price | Compare |
|---|---|---|---|
| 1. | Drum Alloy Wheel Petrol, Automatic, 124.8 cc | ₹79,300* | |
| 2. | Disc Alloy Wheel Petrol, Automatic, 124.8 cc | ₹84,000* | |
| 3. | SmartXonnect Petrol, Automatic, 124.8 cc | ₹90,500* | |
TVS Jupiter 125 Specifications
| No of Cylinders | 1 |
| Valves per Cylinder | 2 |
| Max Power (bhp@rpm) | 8.15 PS @ 6500 rpm |
| Max Torque (nm@rpm) | 10.5 Nm @ 4,500 rpm |
| Emission Type | BS6-2.0 |
| Length (mm) | 1,852 mm |
| Width (mm) | 681 mm |
| Height (mm) | 1,168 mm |
| Wheelbase (mm) | 1,275 mm |
| Ground Clearance (mm) | 163 mm |
| Fuel Tank Capacity (Liters) | 5.1 litres |
| Kerb Weight (Kg) | 108 kg |
| Seat Height (mm) | 765 mm |
| Seating Capacity | 2 |
| Tyre Size - Front | 90/90 -12 |
| Tyre Size - Rear | 90/90 -12 |
| Wheel Size - Front | 304.8 mm |
| Wheel Size - Rear | 304.8 mm |
| Wheel Type | Alloy |
| Suspension - Front | Telescopic Hydraulic |
| Suspension - Rear | Monotube Inverted Gas filled |
| Brake Type - Front | Drum |
| Brake Type - Rear | Drum |
| Brake Size - Front (mm) | 130 mm |
| Brake Size - Rear (mm) | 130 mm |
| ABS (Anti-lock Braking System) | Yes |
| Techometer | -- |
| Electric Start | Yes |
| Speedometer | Analog+Digital |
| Odometer | Digital |
| Fuel Gauge | Yes |
| Low Fuel Indicator | Yes |
| Low Battery Indicator | Yes |
| Low Oil Indicator | No |
| Side Stand Alarm | Yes |
| Engine Kill Switch | Yes |
| Clock | Yes |
| Navigation System | No |
| USB Compability | No |
| Bluetooth | No |
| TC (Traction Control) | No |
| Standard Warranty (Year) | 5 Year |
| Standard Warranty (Kilometers) | 50000 km |
