TVS Jupiter

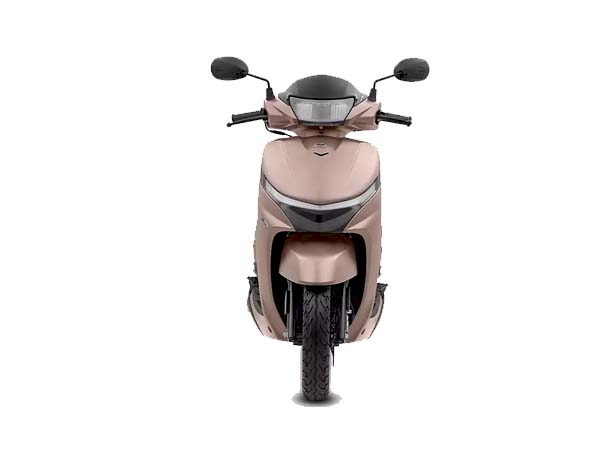

Front View

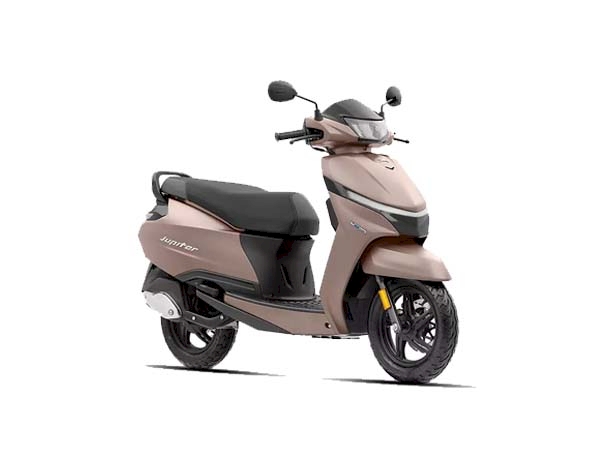

Front Right 3/4 View

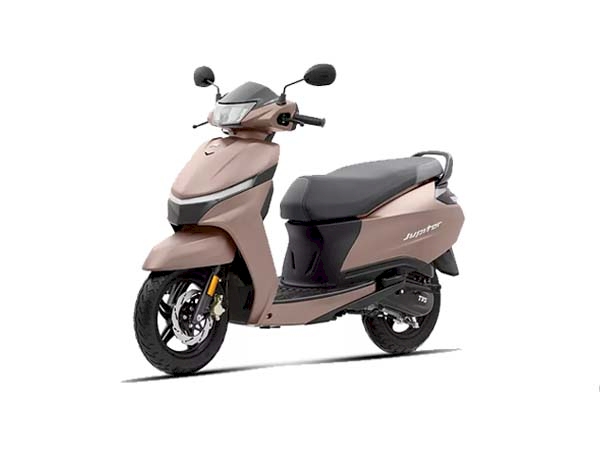

Front Left 3/4 View

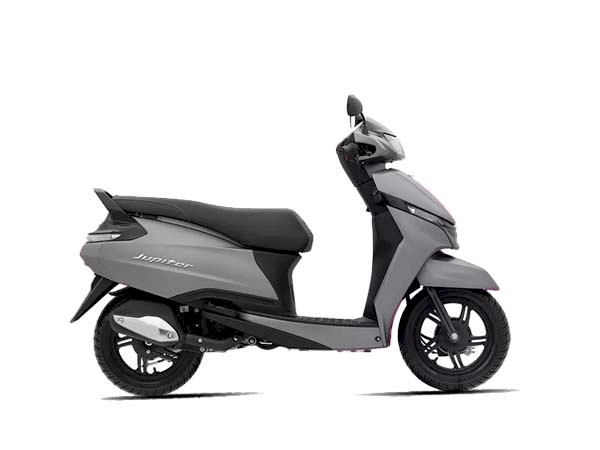

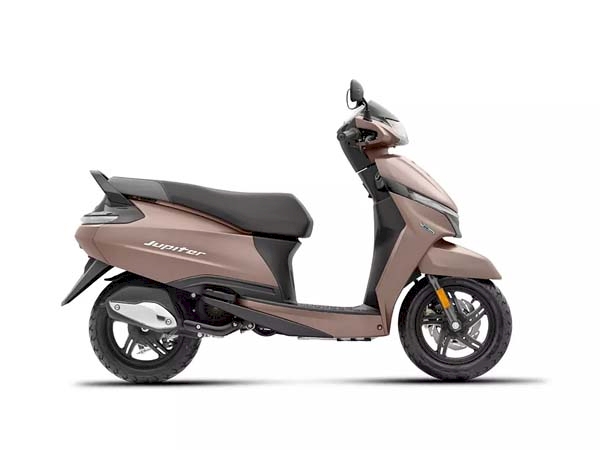

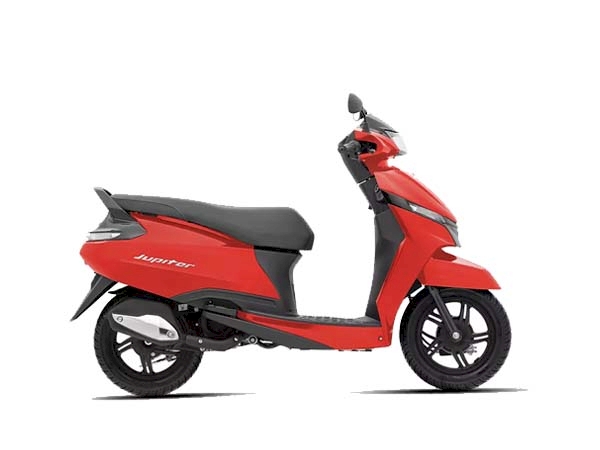

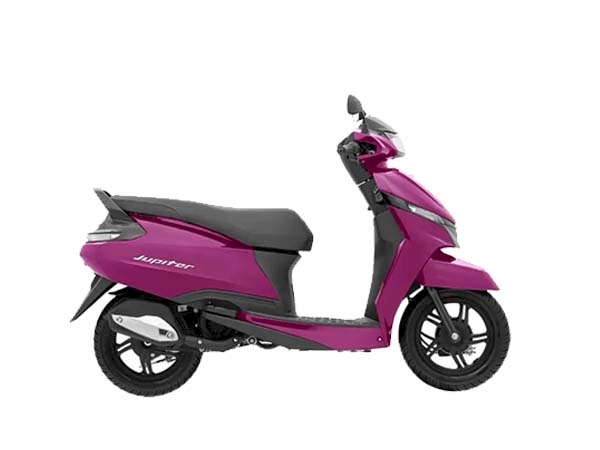

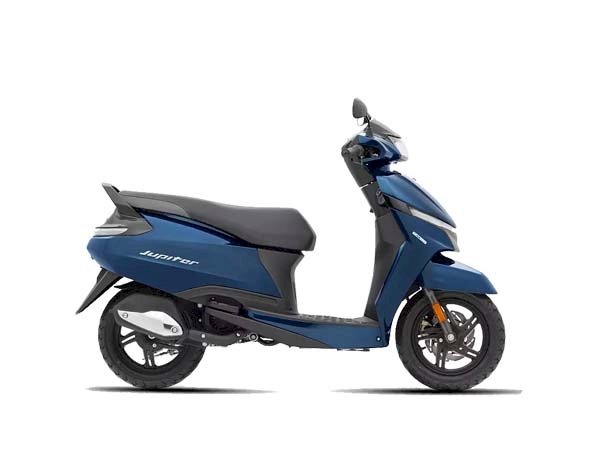

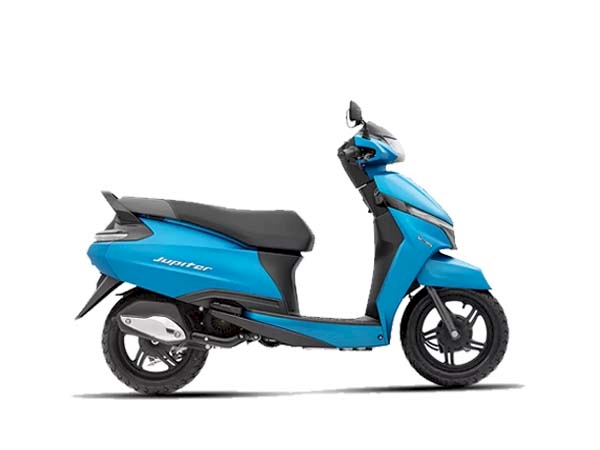

Right Side View

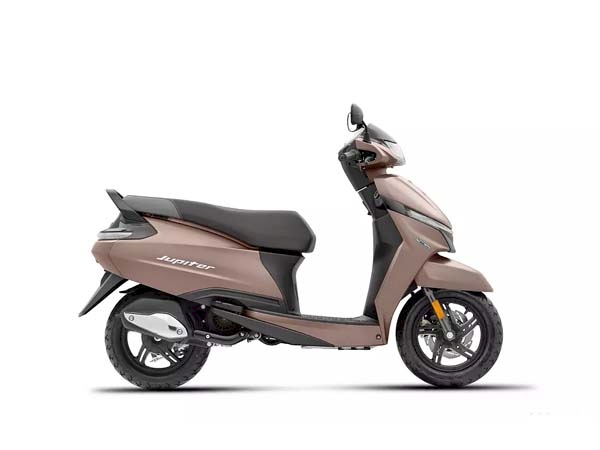

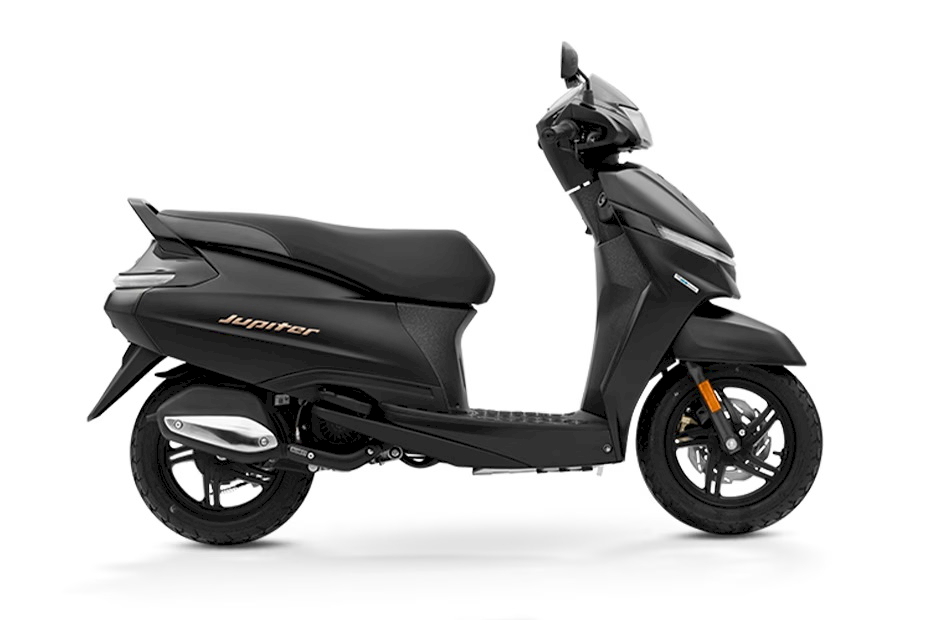

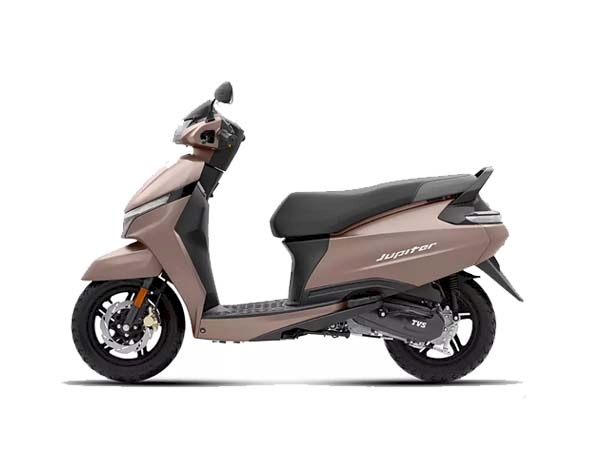

Left Side View

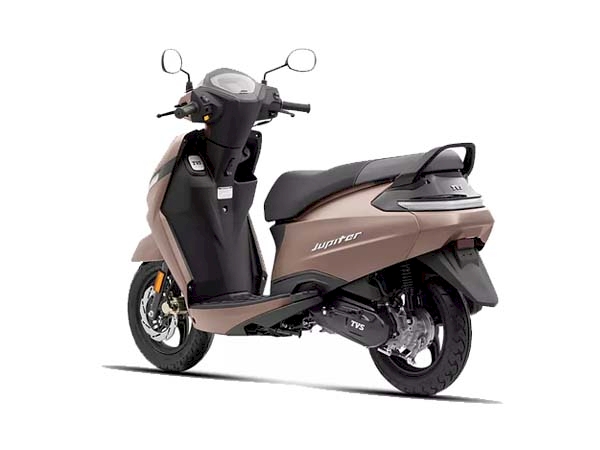

Rear Right 3/4 View

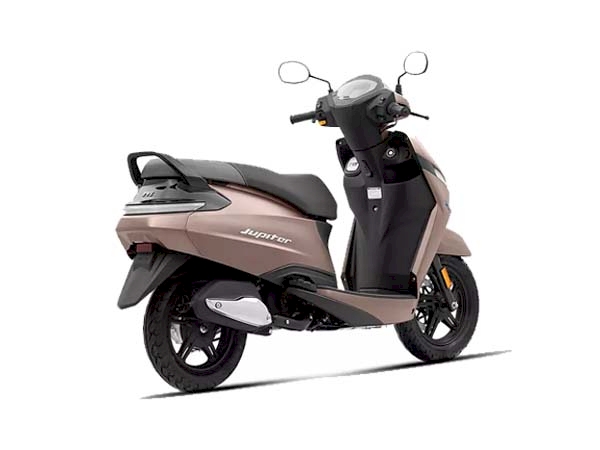

Rear Left 3/4 View

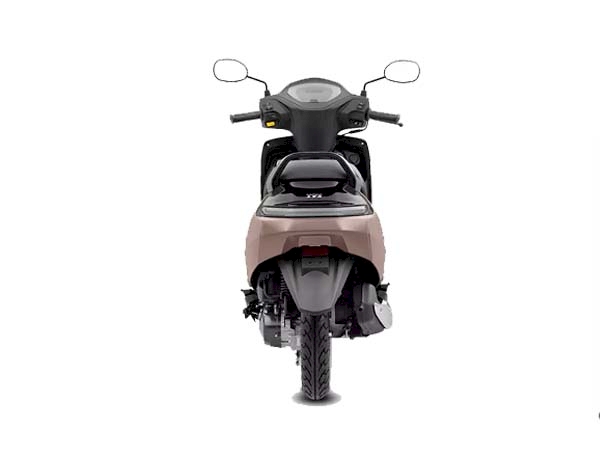

Rear View

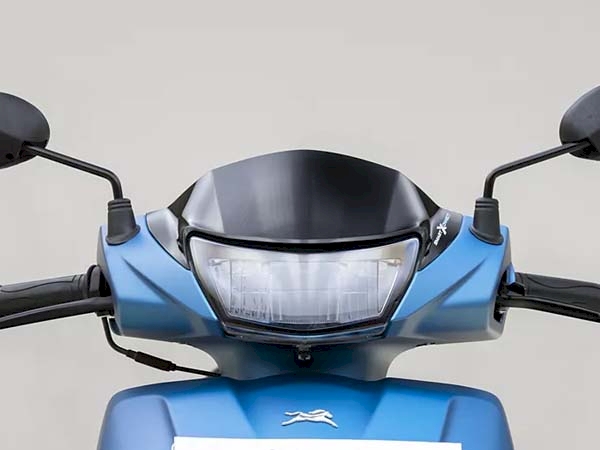

Windshield View

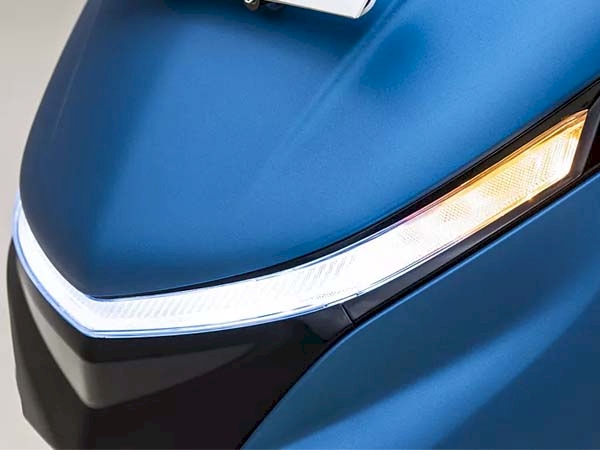

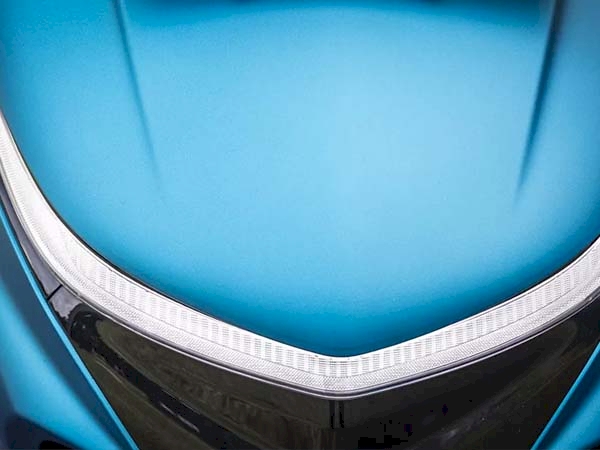

Head Light View

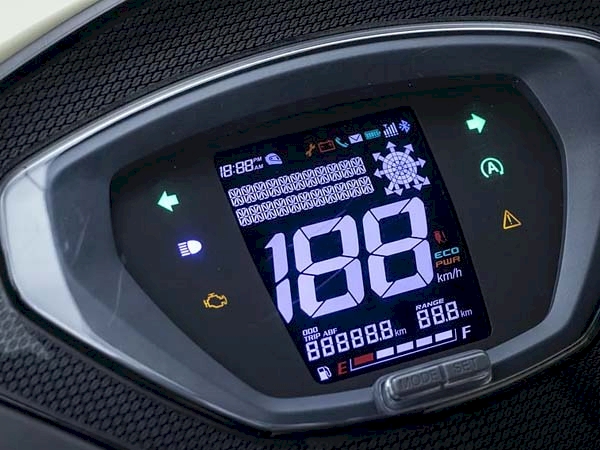

Speedometer View
Starter Button View

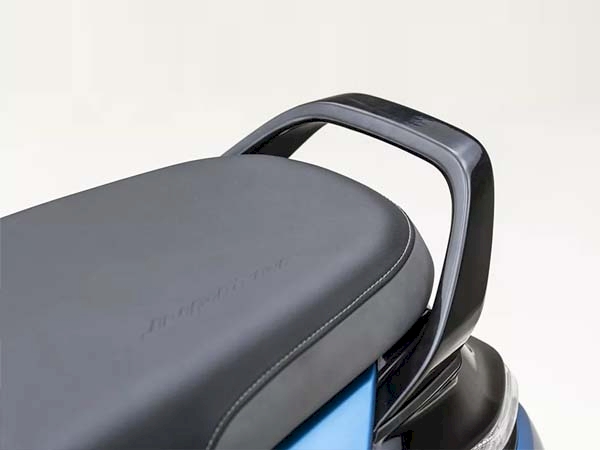

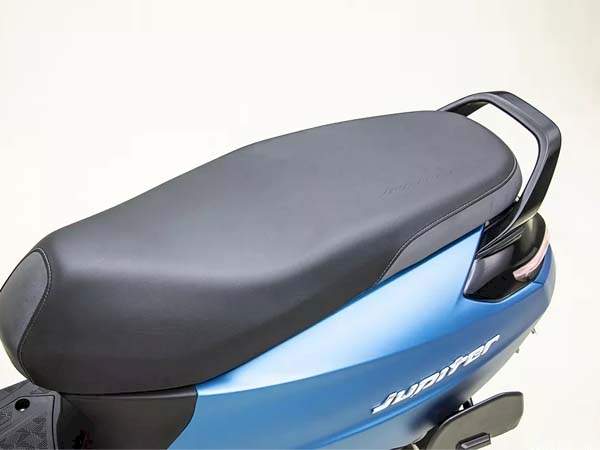

Seat View

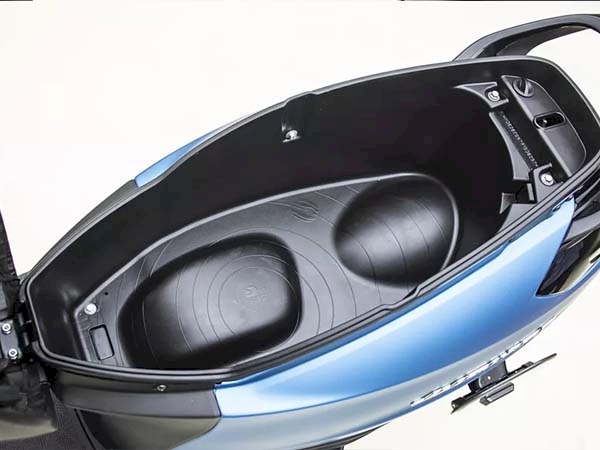

Seat Storage Side View

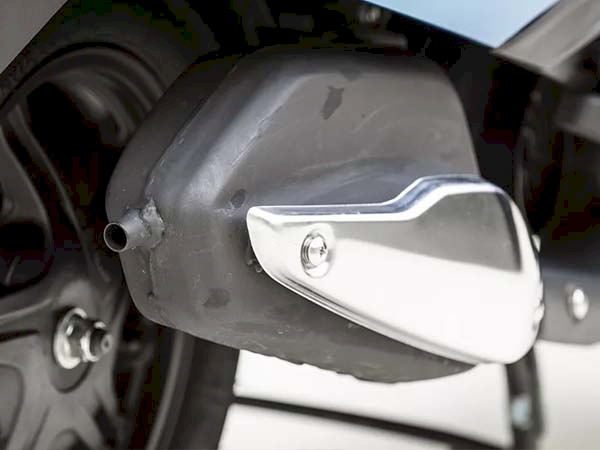

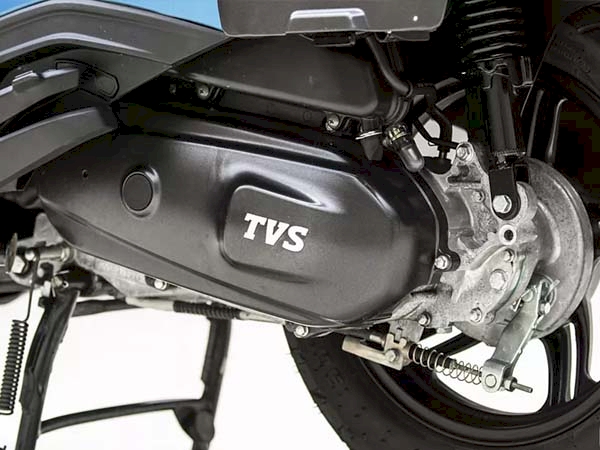

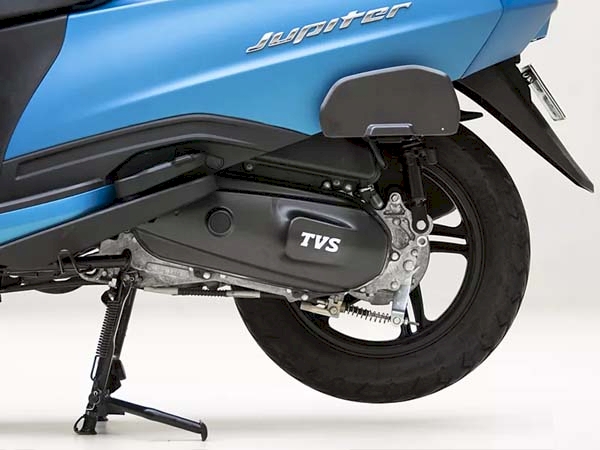

Engine View
Starlight Blue Gloss

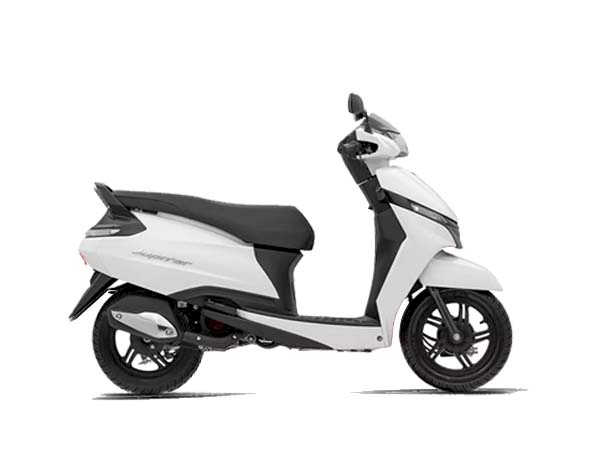

Lunar White Gloss
Meteor Red Gloss
Dawn Blue Matte
Titanium Grey Matte
Galactic Copper Matte
TVS Jupiter Summary
Fuel Type
Petrol
Engine
113.3 cc
Transmission
Automatic
Mileage
48 kmpl
Body Type
Scooter
Max Power
7.91 bhp @ 6500 rpm
Seating Capacity
2
TVS Jupiter Colours (6 Colours)
TVS Jupiter Varients (4 Varients)
| # | Varients | Ex-showroom price | Compare |
|---|---|---|---|
| 1. | Drum Petrol, Automatic, 113.3 cc | ₹73,700* | |
| 2. | Drum Alloy Petrol, Automatic, 113.3 cc | ₹79,200* | |
| 3. | SmartXonnect Drum Petrol, Automatic, 113.3 cc | ₹83,250* | |
| 4. | SmartXonnect Disc Petrol, Automatic, 113.3 cc | ₹87,250* | |
TVS Jupiter Specifications
| No of Cylinders | 1 |
| Valves per Cylinder | 2 |
| Max Power (bhp@rpm) | 7.91 bhp @ 6500 rpm |
| Max Torque (nm@rpm) | 9.8 Nm @ 5000 rpm |
| Emission Type | BS6-2.0 |
| Length (mm) | 1,848 mm |
| Width (mm) | 665 mm |
| Height (mm) | 1,158 mm |
| Wheelbase (mm) | 1,275 mm |
| Ground Clearance (mm) | 163 mm |
| Fuel Tank Capacity (Liters) | 5.1 litres |
| Kerb Weight (Kg) | 106 Kg |
| Seat Height (mm) | 765 mm |
| Seating Capacity | 2 |
| Tyre Size - Front | 90/90 - 12 |
| Tyre Size - Rear | 90/90 - 12 |
| Wheel Size - Front | 304.8 mm |
| Wheel Size - Rear | 304.8 mm |
| Wheel Type | Alloy |
| Suspension - Front | Telescopic hydraulic |
| Suspension - Rear | Twin tube emulsion type shock |
| Brake Type - Front | Drum |
| Brake Type - Rear | Drum |
| Brake Size - Front (mm) | 130 mm |
| Brake Size - Rear (mm) | 130 mm |
| ABS (Anti-lock Braking System) | Yes |
| Techometer | -- |
| Electric Start | Yes |
| Speedometer | Analog |
| Odometer | Digital |
| Fuel Gauge | Yes |
| Low Fuel Indicator | Yes |
| Low Battery Indicator | Yes |
| Low Oil Indicator | Yes |
| Side Stand Alarm | No |
| Engine Kill Switch | Yes |
| Clock | Yes |
| Navigation System | No |
| USB Compability | Yes |
| Bluetooth | No |
| TC (Traction Control) | No |
| Standard Warranty (Year) | 5 Year |
| Standard Warranty (Kilometers) | 50000 km |
