Honda Dio 125

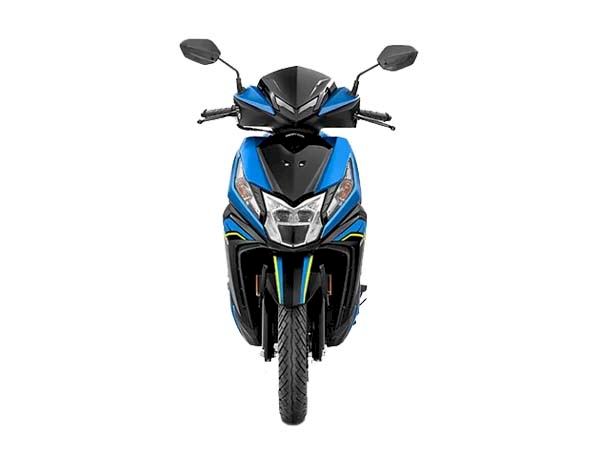

Front View

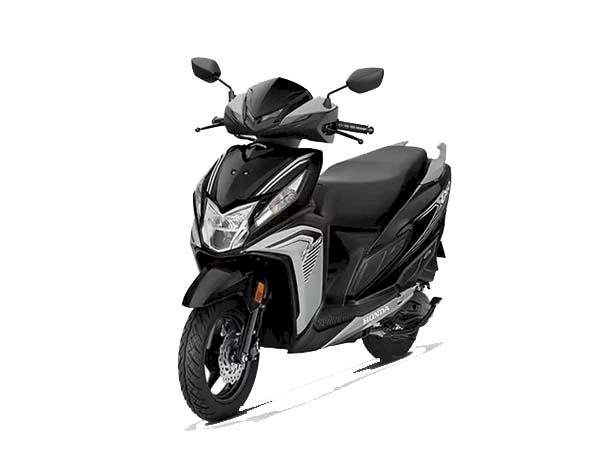

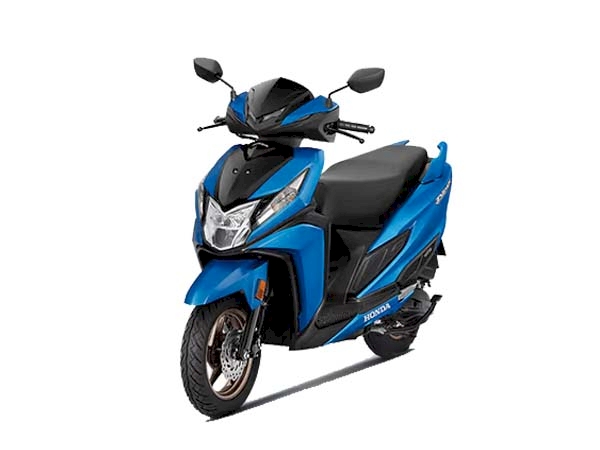

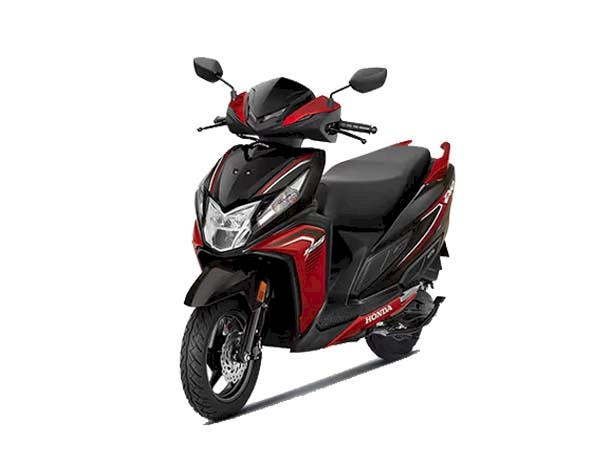

Front Right 3/4 View
Right Side View

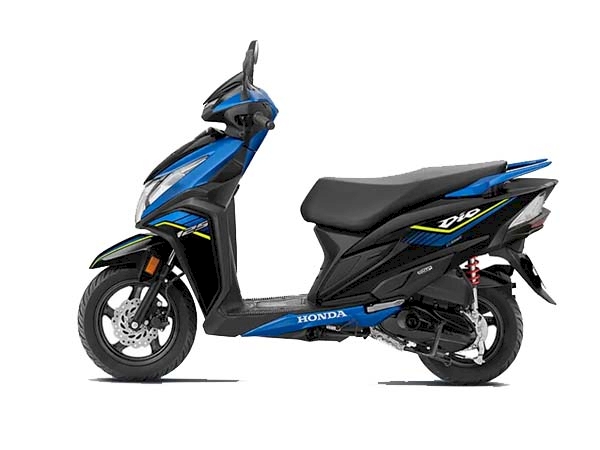

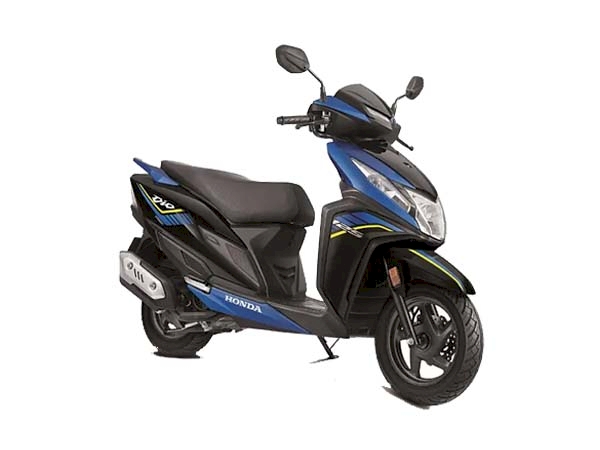

Left Side View

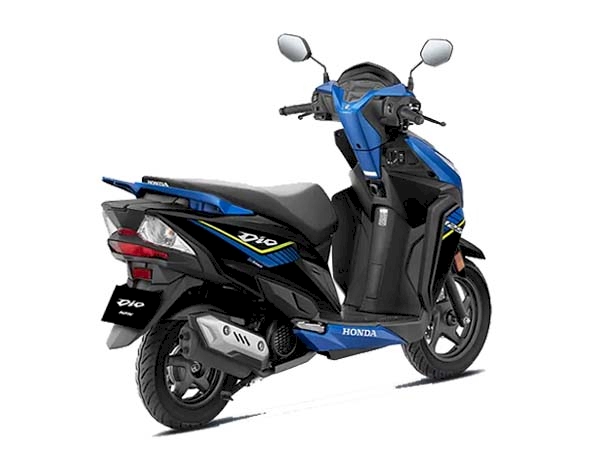

Rear Right 3/4 View

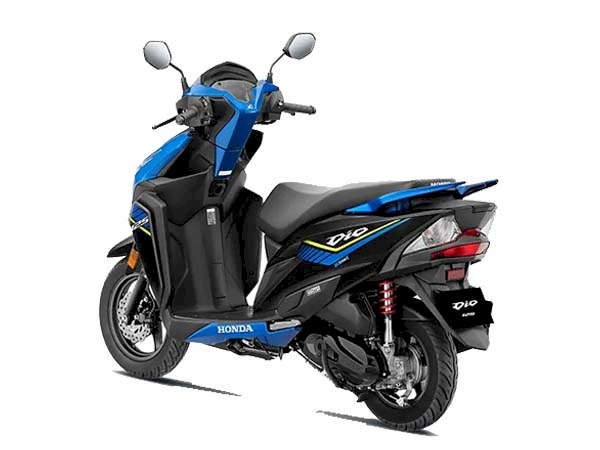

Rear Left 3/4 View

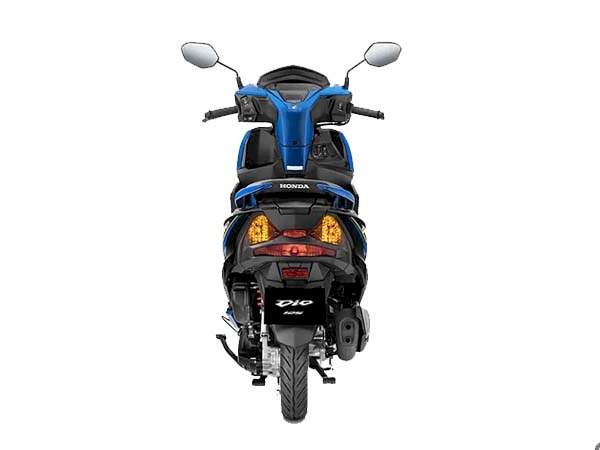

Rear View

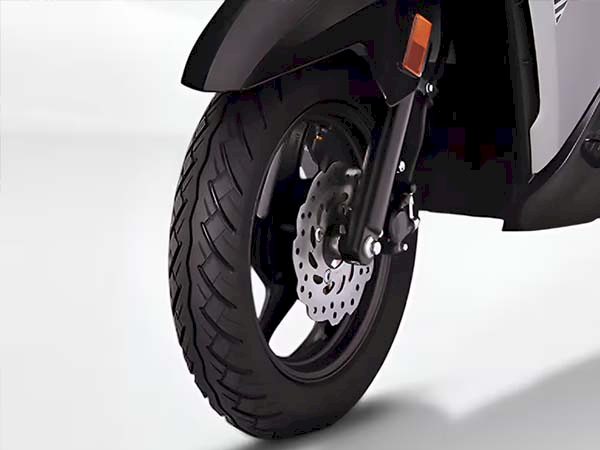

Front Wheel Tyre View
Rear Wheel Tyre View

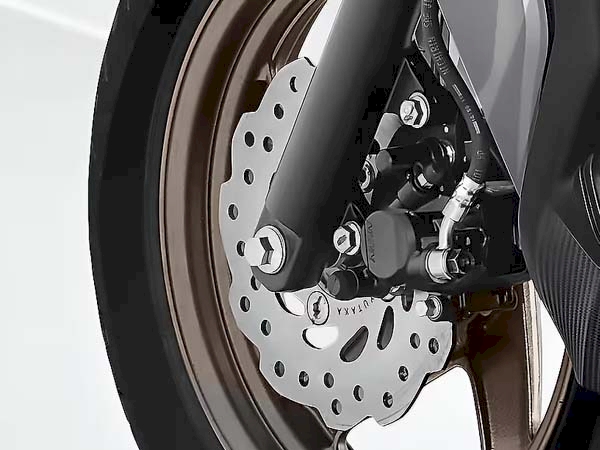

Front Suspension View

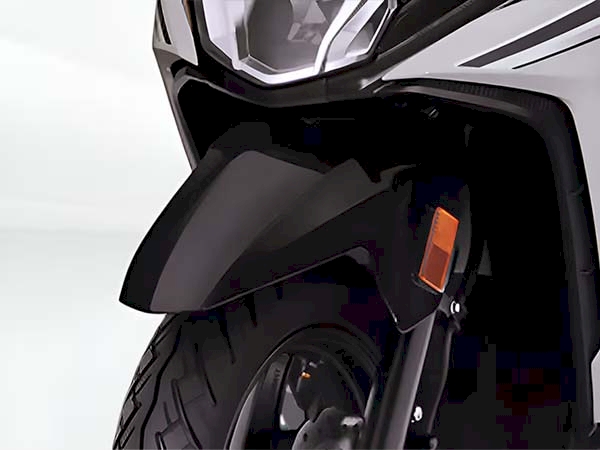

Front Mudguard View

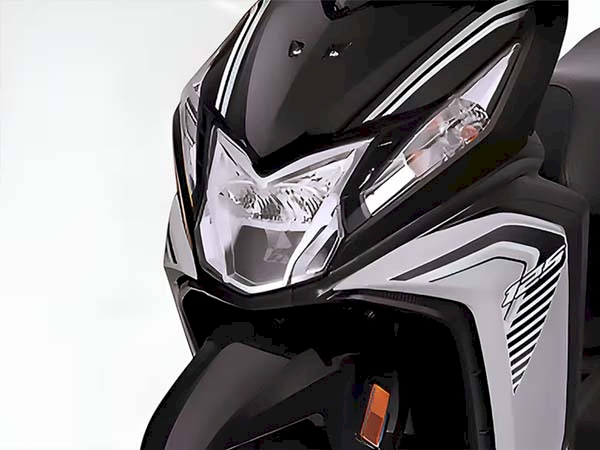

Head Light View

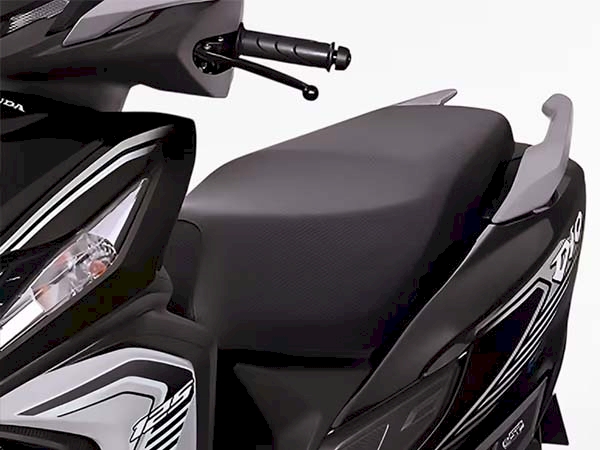

Seat View
Pearl Nightstar Black
Sport Red
Pearl Siren Blue
Pearl Deep Ground Gray
Mat Marvel Blue Metallic
Mat Axis Gray Metallic
Mat Sangria Red Metallic
Ross White & Vibrant Orange
Honda Dio 125 Summary
Fuel Type
Petrol
Engine
123.92 cc
Transmission
Automatic
Mileage
48 kmpl
Body Type
Scooter
Max Power
8.28 PS @6250 rpm
Seating Capacity
2
Honda Dio 125 Colours (8 Colours)
Honda Dio 125 Varients (2 Varients)
Honda Dio 125 Specifications
| No of Cylinders | 1 |
| Valves per Cylinder | 2 |
| Max Power (bhp@rpm) | 8.28 PS @6250 rpm |
| Max Torque (nm@rpm) | 10.4 Nm @5000 rpm |
| Emission Type | BS6-2.0 |
| Length (mm) | 1830 mm |
| Width (mm) | 707 mm |
| Height (mm) | 1172 mm |
| Wheelbase (mm) | 1260 mm |
| Ground Clearance (mm) | 171 mm |
| Fuel Tank Capacity (Liters) | 5.3 litres |
| Kerb Weight (Kg) | 104 kg |
| Seat Height (mm) | - |
| Seating Capacity | 2 |
| Tyre Size - Front | 90/90-12 |
| Tyre Size - Rear | 90/100 - 10 |
| Wheel Size - Front | 304.8 mm |
| Wheel Size - Rear | 254 mm |
| Wheel Type | Alloy |
| Suspension - Front | Telescopic Suspension |

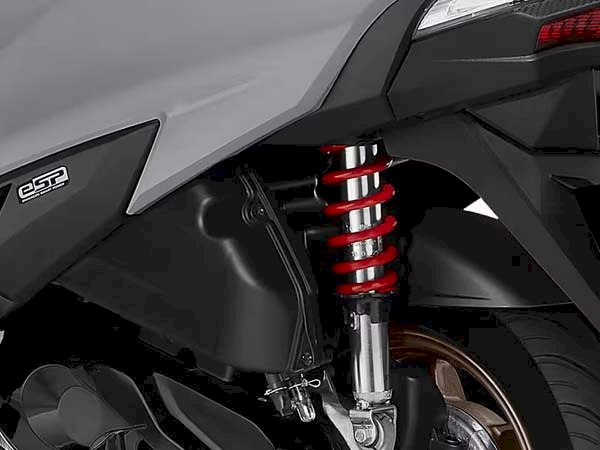

| Suspension - Rear | 3 Step Adjustable Spring Loade |
| Brake Type - Front | Disc |
| Brake Type - Rear | Drum |
| Brake Size - Front (mm) | - |
| Brake Size - Rear (mm) | - |
| ABS (Anti-lock Braking System) | Yes |
| Techometer | Analog |
| Electric Start | Yes |

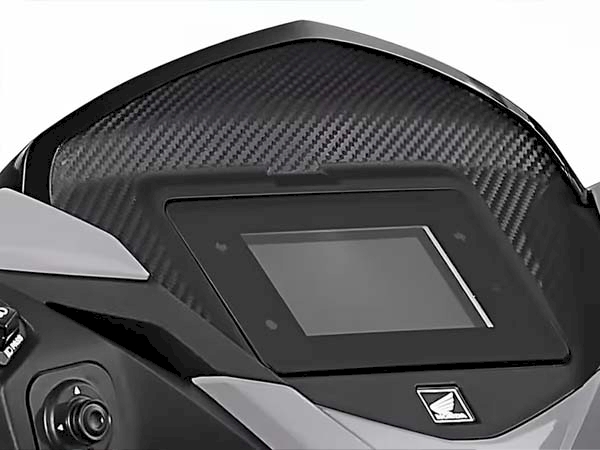

| Speedometer | Digital |
| Odometer | Digital |
| Fuel Gauge | Yes |
| Low Fuel Indicator | Yes |
| Low Battery Indicator | Yes |
| Low Oil Indicator | No |
| Side Stand Alarm | Yes |
| Engine Kill Switch | Yes |
| Clock | Yes |
| Navigation System | No |
| USB Compability | No |
| Bluetooth | No |
| TC (Traction Control) | No |
| Standard Warranty (Year) | 3 Year |
| Standard Warranty (Kilometers) | 36000 Km |
