Honda Dio
Front View
Front Right 3/4 View
Front Left 3/4 View
Right Side View
Left Side View
Rear Fight 3/4 View
Rear Left 3/4 View
Rear View
Front Tyre & Wheel View
Rear Tyre & Wheel View

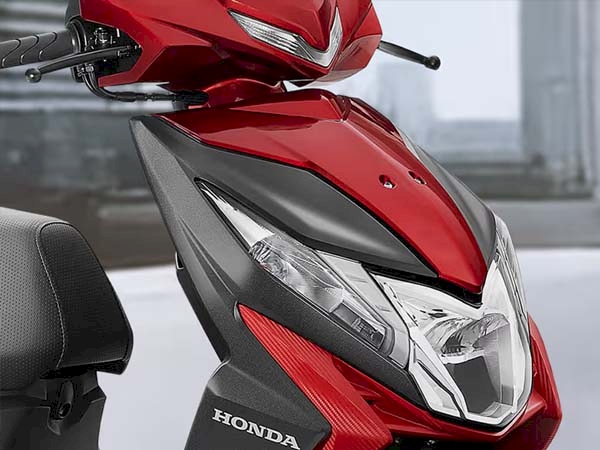

Head Light View
Self Starter Button View
Speedometer View
Foot Space View
Engine View
Seat View

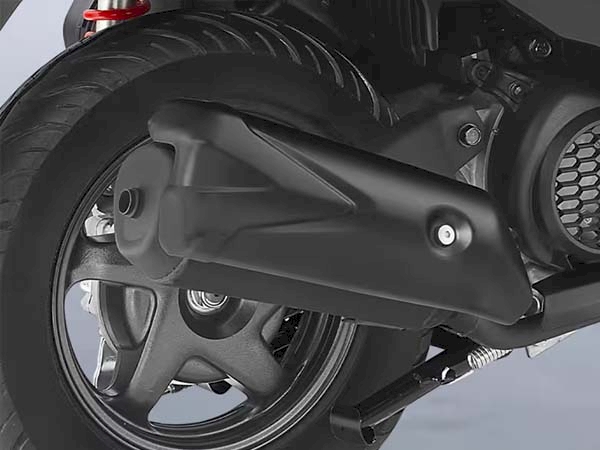

Exhaust View
Model Name
Dazzle Yellow Metallic
Mat Sangria Red Metallic
Matte Axis Grey Metallic
Jazzy Blue Metallic
Sports Red
Pearl Igneous Black
Mat Dark Blue Metallic
Honda Dio Summary
Fuel Type
Petrol
Engine
109.51 cc
Transmission
Automatic
Mileage
55 kmpl
Body Type
Scooter
Max Power
7.85 PS @ 8000 rpm
Seating Capacity
2
Honda Dio Colours (7 Colours)
Honda Dio Varients (3 Varients)
Honda Dio Specifications
| No of Cylinders | 1 |
| Valves per Cylinder | 2 |
| Max Power (bhp@rpm) | 7.85 PS @ 8000 rpm |
| Max Torque (nm@rpm) | 9.3 Nm @ 5250 rpm |
| Emission Type | BS6-2.0 |
| Length (mm) | 1,808 mm |
| Width (mm) | 723 mm |
| Height (mm) | 1,150 mm |
| Wheelbase (mm) | 1,260 mm |
| Ground Clearance (mm) | 160 mm |
| Fuel Tank Capacity (Liters) | 5.3 litres |
| Kerb Weight (Kg) | 103 Kg |
| Seat Height (mm) | 765 mm |
| Seating Capacity | 2 |
| Tyre Size - Front | 90/90 - 12 |
| Tyre Size - Rear | 90/100 - 10 |
| Wheel Size - Front | 304.8 mm |
| Wheel Size - Rear | 254 mm |
| Wheel Type | Split Rim |
| Suspension - Front | Telescopic |
| Suspension - Rear | Unit Swing |
| Brake Type - Front | Drum |
| Brake Type - Rear | Drum |
| Brake Size - Front (mm) | 130 mm |
| Brake Size - Rear (mm) | 130 mm |
| ABS (Anti-lock Braking System) | Yes |
| Techometer | -- |
| Electric Start | Yes |
| Speedometer | Analog |
| Odometer | Analog |
| Fuel Gauge | Yes |
| Low Fuel Indicator | Yes |
| Low Battery Indicator | No |
| Low Oil Indicator | Yes |
| Side Stand Alarm | Yes |
| Engine Kill Switch | Yes |
| Clock | No |
| Navigation System | No |
| USB Compability | No |
| Bluetooth | No |
| TC (Traction Control) | No |
| Standard Warranty (Year) | 3 Year |
| Standard Warranty (Kilometers) | 36000 Km |
