TVS Apache RTR 200 4V

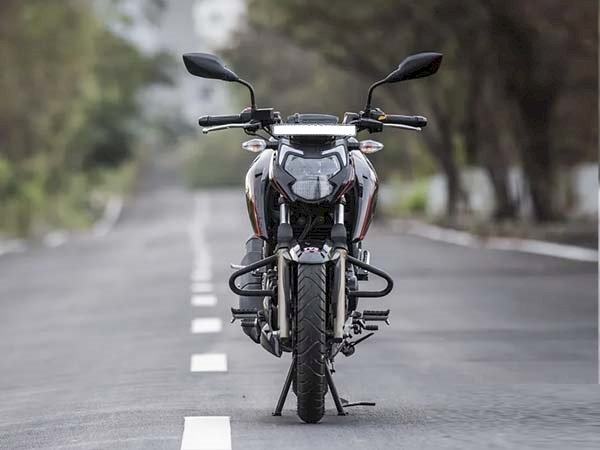

Front View

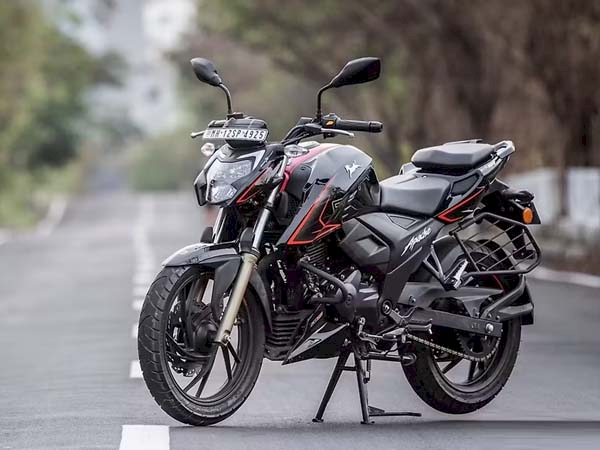

Front Right 3/4 View

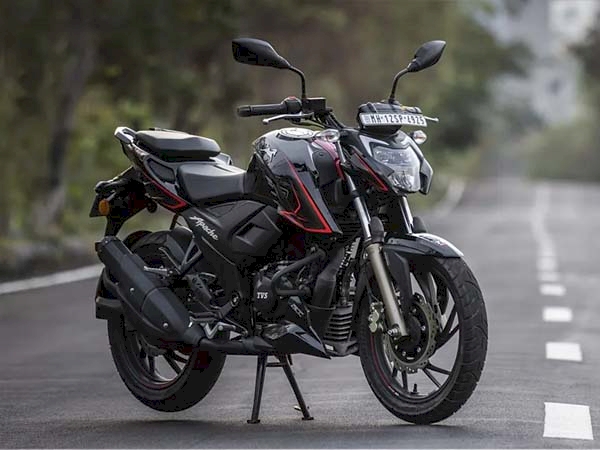

Front Left 3/4 View

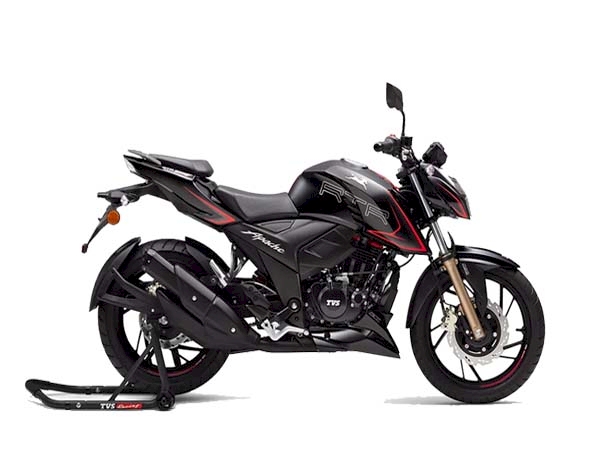

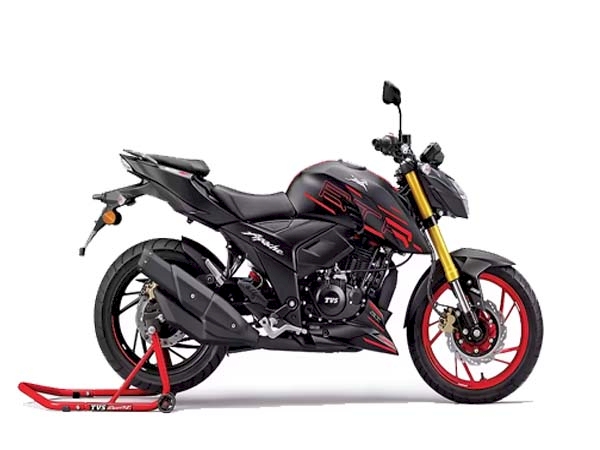

Right Side View

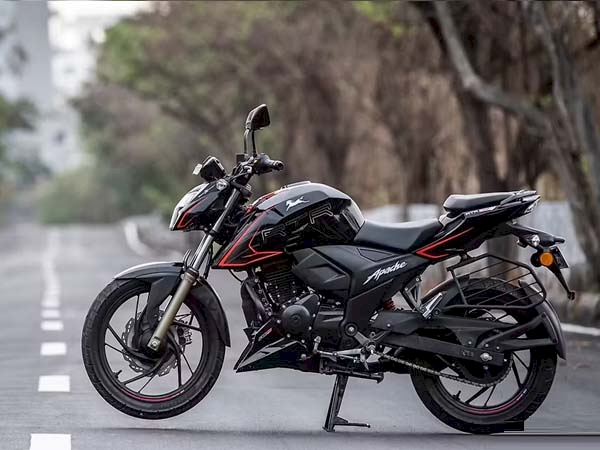

Left Side View

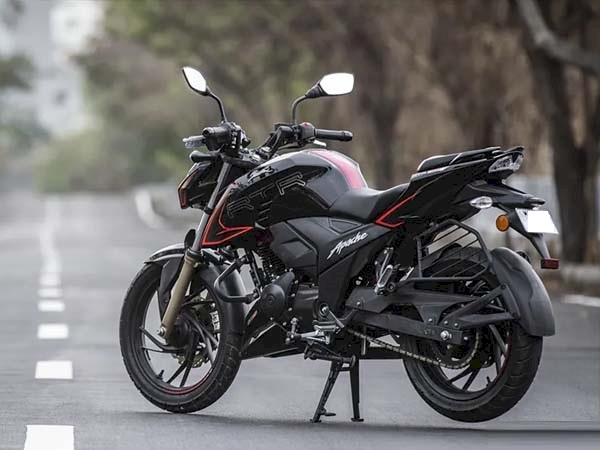

Rear Right 3/4 View

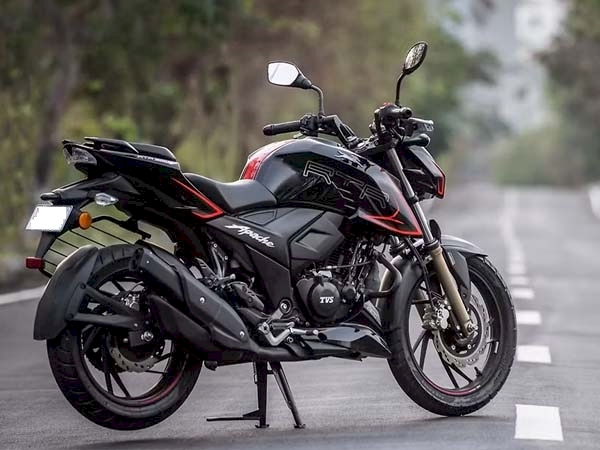

Rear Left 3/4 View

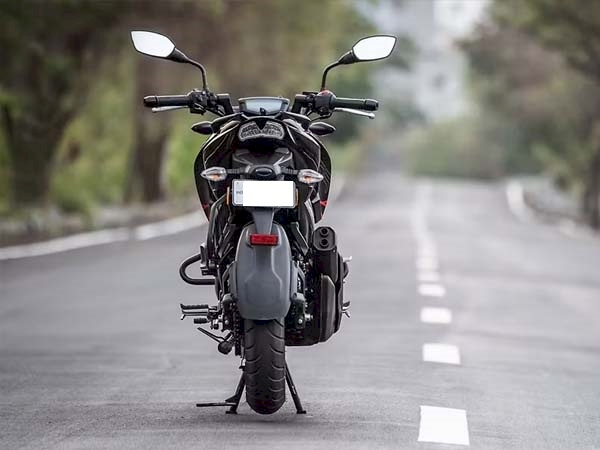

Rear View

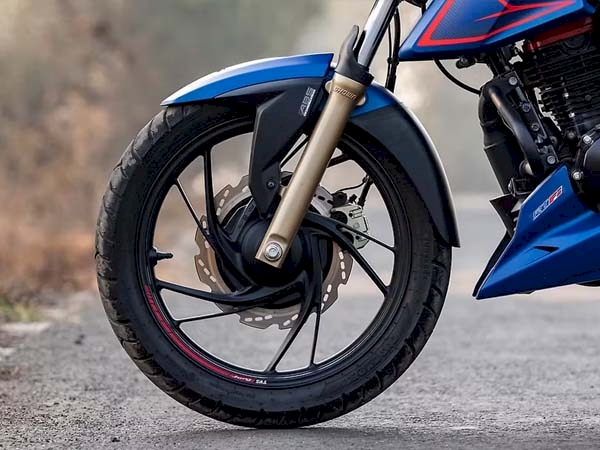

Front Wheel Tyre View

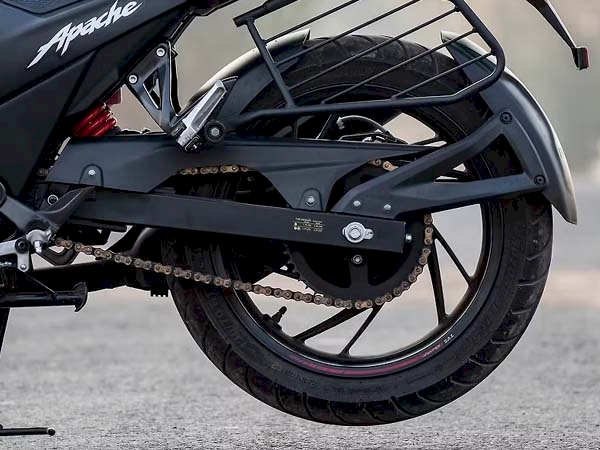

Rear Wheel Tyre View

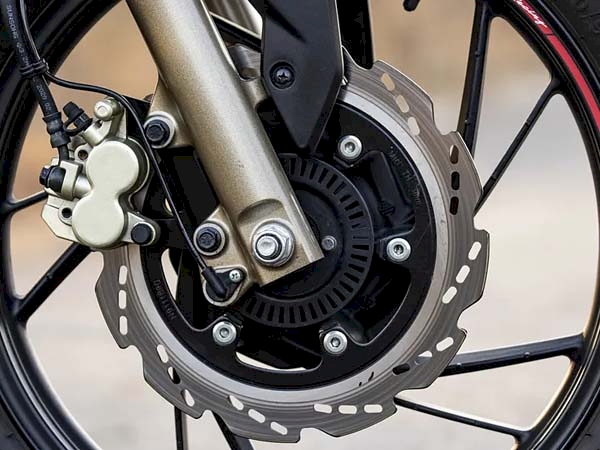

Front Disc Brake View

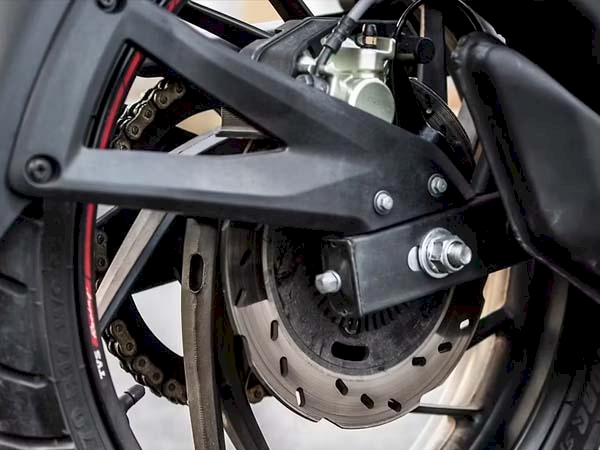

Rear Disc Brake View

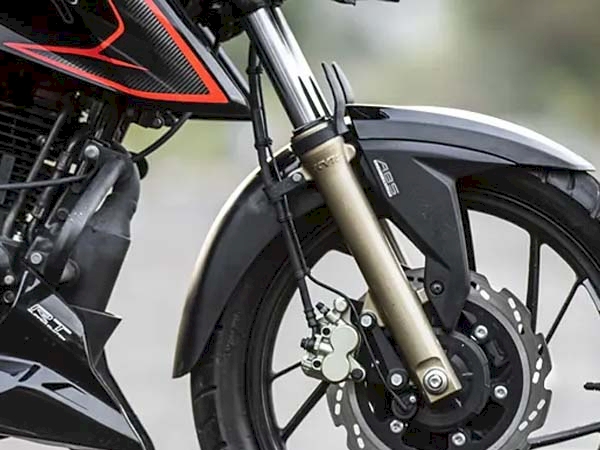

Front Suspension View
Rear Suspension View

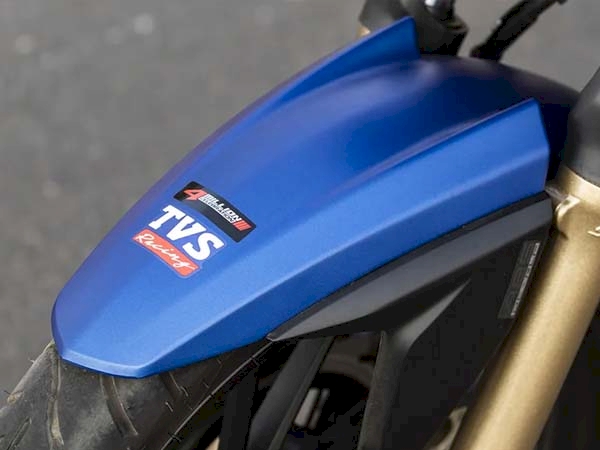

Front Mudguard View

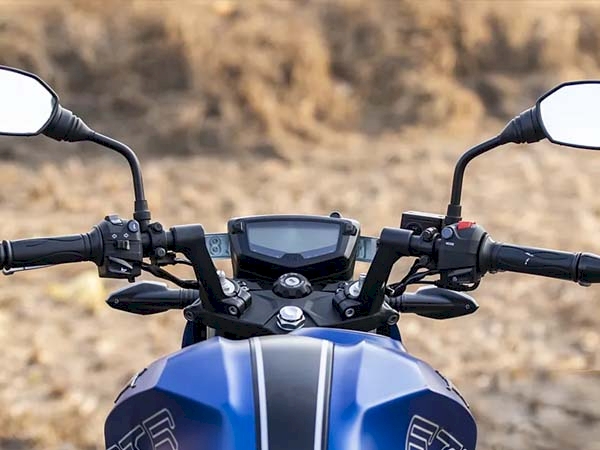

Handle Bar View
Rear View Mirror

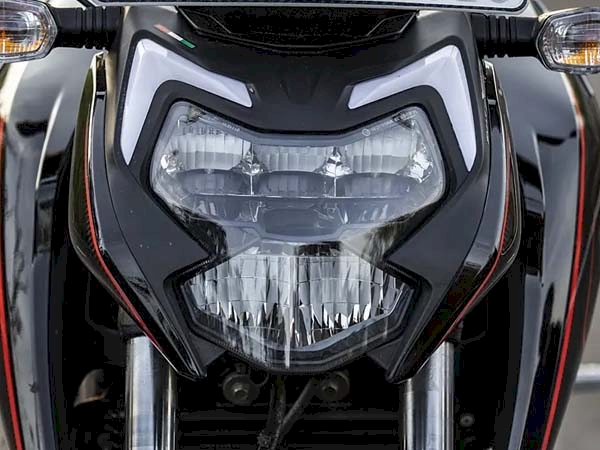

Head Lamp View

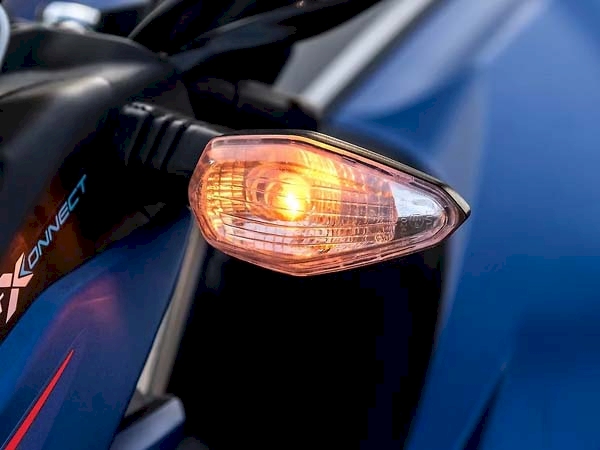

Front Indicator View

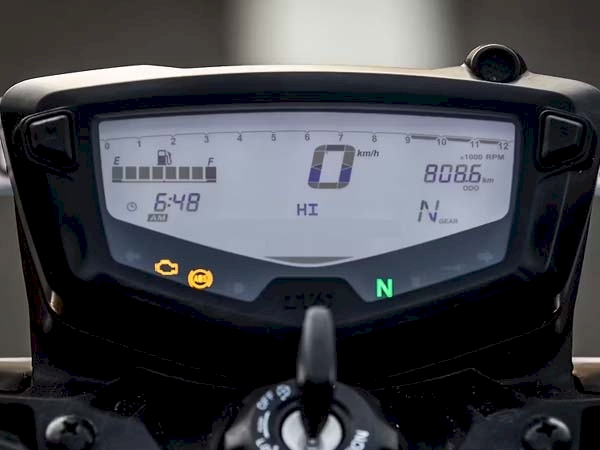

Speedometer View

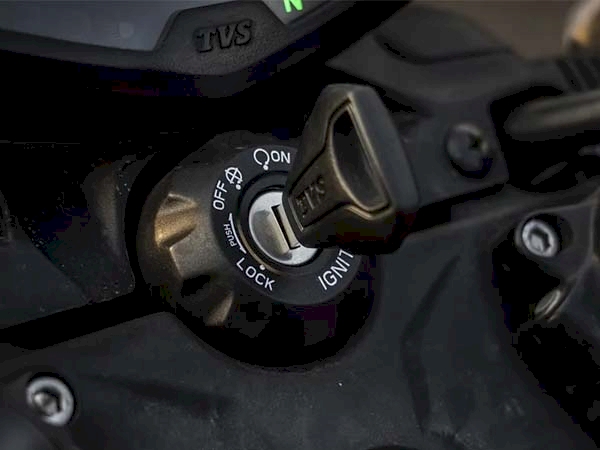

Ignition View
Fuel Tank View
Engine View
Muffler View

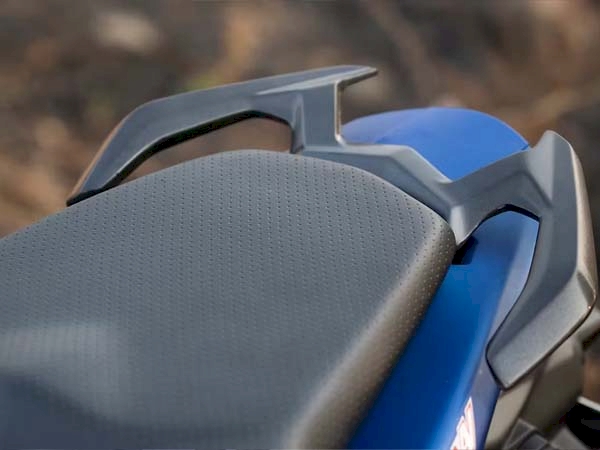

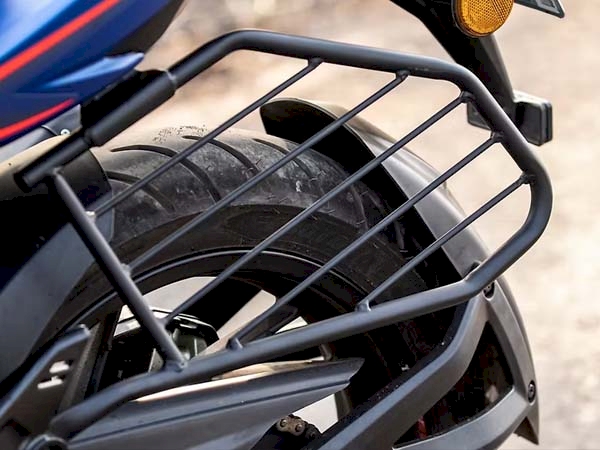

Grab Rail View

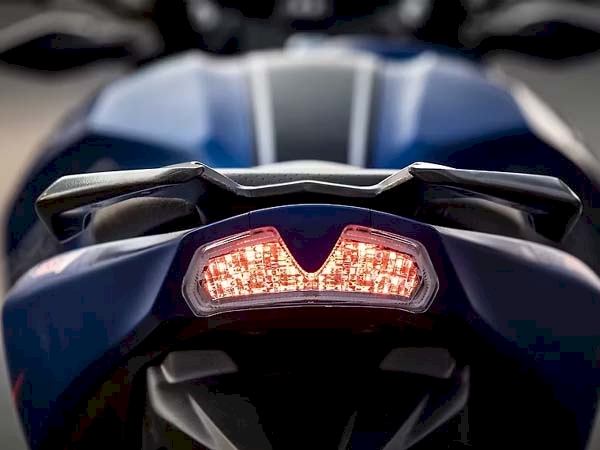

Tail Lamp View

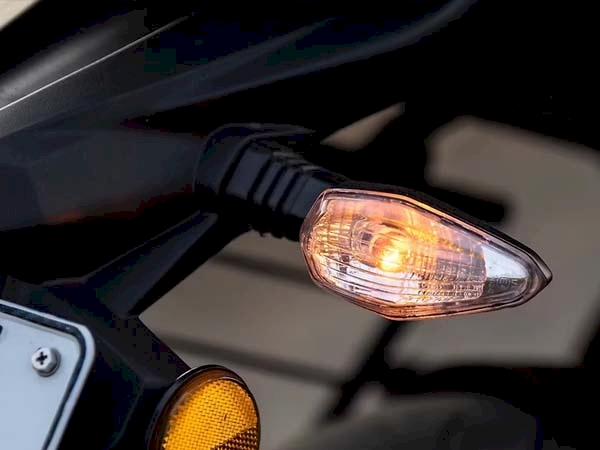

Rear Indicator View

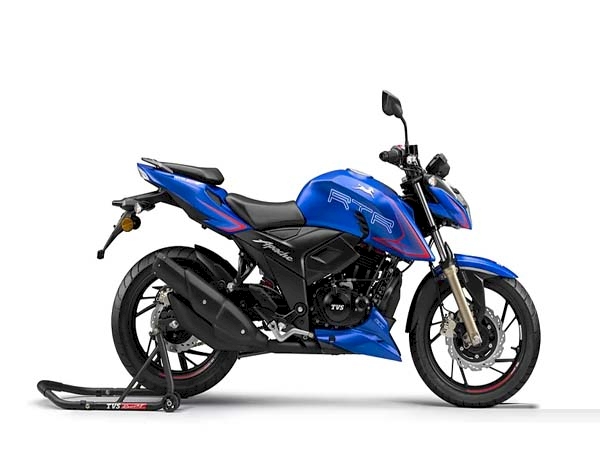

Matte Blue
Gloss Black
Pearl White
TVS Apache RTR 200 4V Summary
Fuel Type
Petrol
Engine
197.75 cc
Transmission
Manual
Mileage
41 kmpl
Body Type
Sports
Max Power
20.82 bhp @ 9,000 rp
Seating Capacity
2
TVS Apache RTR 200 4V Colours (3 Colours)
TVS Apache RTR 200 4V Varients (2 Varients)
| # | Varients | Ex-showroom price | Compare |
|---|---|---|---|
| 1. | Single Channel ABS Petrol, Manual, 197.75 cc | ₹1.44 Lakh* | |
| 2. | Dual Channel ABS Petrol, Manual, 197.75 cc | ₹1.47 Lakh* | |
TVS Apache RTR 200 4V Specifications
| No of Cylinders | 1 |
| Valves per Cylinder | 4 |
| Max Power (bhp@rpm) | 20.82 bhp @ 9,000 rp |
| Max Torque (nm@rpm) | 17.25 Nm @ 7,250 rpm |
| Emission Type | BS6-2.0 |
| Length (mm) | 2,050 mm |
| Width (mm) | 790 mm |
| Height (mm) | 1,050 mm |
| Wheelbase (mm) | 1,353 mm |
| Ground Clearance (mm) | 180 mm |
| Fuel Tank Capacity (Liters) | 12 litres |
| Kerb Weight (Kg) | 152 kg |
| Seat Height (mm) | 800 mm |
| Seating Capacity | 2 |
| Tyre Size - Front | 90/90-17 |
| Tyre Size - Rear | 130/70-17 |
| Wheel Size - Front | 431.8 mm |
| Wheel Size - Rear | 431.8 mm |
| Wheel Type | Alloy |
| Suspension - Front | Telescopic Forks with Preload |
| Suspension - Rear | Mono Tube - Mono Shock |
| Brake Type - Front | Disc |
| Brake Type - Rear | Disc |
| Brake Size - Front (mm) | 270 mm |
| Brake Size - Rear (mm) | 240 mm |
| ABS (Anti-lock Braking System) | Yes |
| Techometer | Digital |
| Electric Start | Yes |
| Speedometer | Digital |
| Odometer | Digital |
| Fuel Gauge | Yes |
| Low Fuel Indicator | Yes |
| Low Battery Indicator | Yes |
| Low Oil Indicator | Yes |
| Side Stand Alarm | No |
| Engine Kill Switch | Yes |
| Clock | Yes |
| Navigation System | Yes |
| USB Compability | No |
| Bluetooth | Yes |
| TC (Traction Control) | No |
| Standard Warranty (Year) | 5 Year |
| Standard Warranty (Kilometers) | 60000 km |
